Teltonika | Telematics • FMM00A Datasheet v1.8 &bull 2025-03-19
|
CAT M1
Supports LTE Cat M1 connectivity, enabling low-power wide-area technologies
|
Crash Detection
Crash detection feature based on accelerometer data
|
OBDII Data
Standard OBDII data reading from vehicle ECU
|
Bluetooth® 4.0
Bluetooth for external devices and Low Energy sensors
|

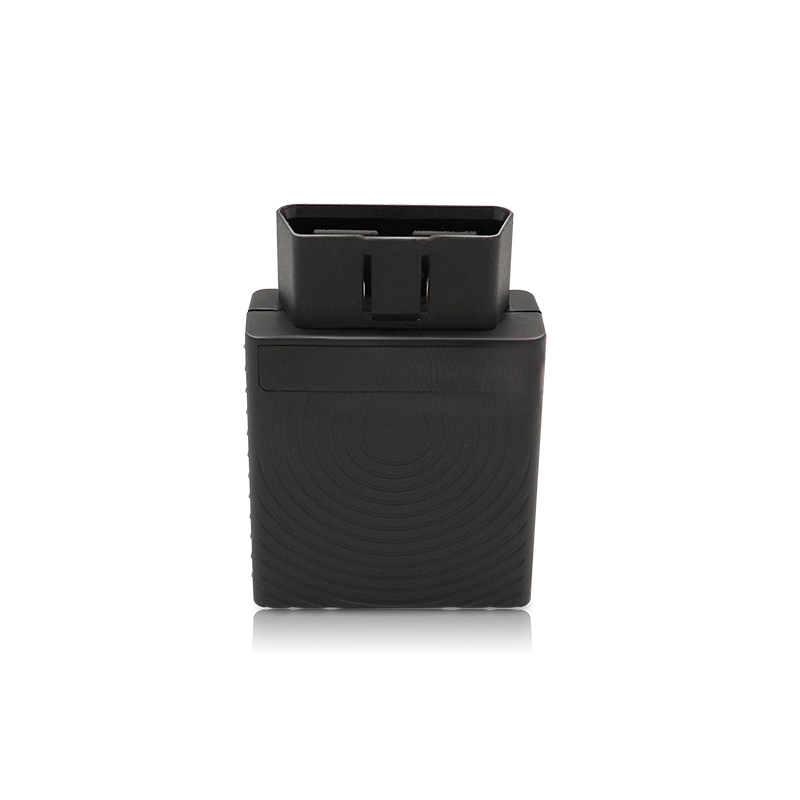

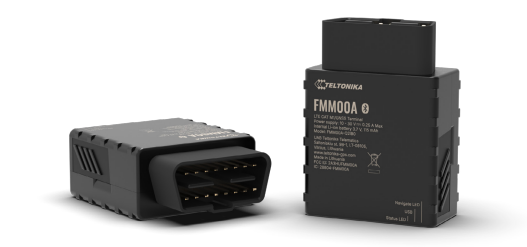

Teltonika FMM00A represents the next step in communication technology – this is the first Plug and Track LTE Cat M1 OBD device with GNSS and Bluetooth® connectivity. Possibility to read OBD II parameters, effortless installation and detailed accelerometer data provides a compelling solution.
This is the perfect tracker for a wide range of applications – fleet management of light commercial vehicles, car rental & leasing, driver log-book, insurance telematics (UBI) and more. The device supports various Bluetooth® Low Energy sensors and beacons, as well as firmware and configuration updates via Bluetooth®.
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS |
|---|---|
| Protocol compatible | NMEA, GGA, GGL, GSA, GSV, RMC, VTG |
| Receiver | Tracking: 33 / 99 acquisition channels |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Module | Quectel BG95-M1 |
|---|---|
| Technology | LTE Cat M1 |
| 4G bands | LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 |
| Data transfer | Cat M1: Max. 588 Kbps (DL) / Max. 1119 Kbps (UL) |
| Data support | SMS (text / data) |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
|---|---|
| Internal back-up battery | 115 mAh Li-Ion, 3.7 V battery (0.43 Wh) |
| Specification | 4.0 + LE |
|---|---|
| Transmit power | Class 5 (20 dBm ± 2 dB) for LTE-FDD bands |
| Supported peripherals | Bluetooth® LE beacon label, Bluetooth® LE beacon, Bluetooth® LE temperature sensor, Bluetooth® LE magnetic sensor, BLE movement sensor, Bluetooth® temperature and humidity sensor |
| Dimensions | 67.2 × 49.6 × 25 mm (L × W × H) |
|---|---|
| Weight | 63 g |
| Operating temperature (without battery) | -40 °C to +85 °C |
|---|---|
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| OBDII connection | K-Line, CAN bus data |
|---|---|
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM card |
| Memory | 128 MB internal flash memory |
| Sensors | Accelerometer |
|---|---|
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, Teltonika Configurator |
| SMS | Configuration, Events, Debug |
| TCP commands | Configuration, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | OBDII (depends on vehicle model) |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM |
Copyright © 2025, Teltonika. Specifications and information given in this document are subject to change by Teltonika without prior notice.
