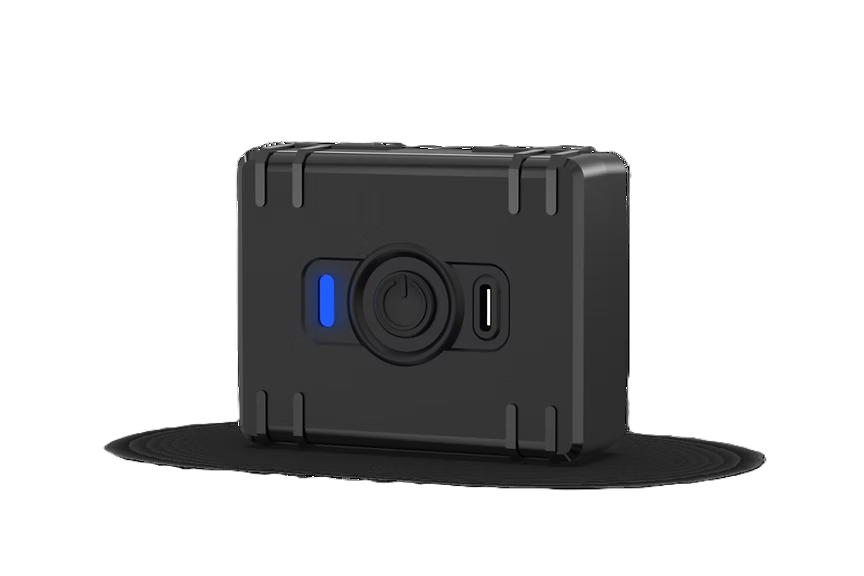

ATM700
Mini Asset Tracker

Mini asset tracker with 4G LTE Cat M1 connectivity

Rechargeable battery
Multi-action button
FT platform device

download spec sheet

Track, charge, repeat

The device comes with a 1,000 mAh rechargeable battery to provide reliable power and uninterrupted tracking

Back-up power support

Compatibility with power banks ensures device operation during prolonged activities or in remote locations

Various button usage options

A multi-action button can be used for different scenarios, such as to activate tracking or act as a panic button

Reliable operation, effortless installation

Protection in extreme weather conditions and fast device set-up without any wires

ATM700

Mini Asset Tracker with 4G LTE Cat M1 Connectivity

Teltonika | Telematics • ATM700 Datasheet v1.0 • 2026‑05‑21

Track, Charge, Repeat

1,000 mAh rechargeable battery provides reliable power and uninterrupted tracking

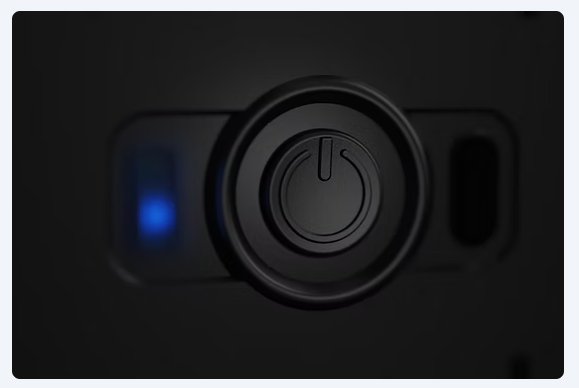

Multi‑Action Button

Configurable button for tracking activation, panic alerts and other custom actions

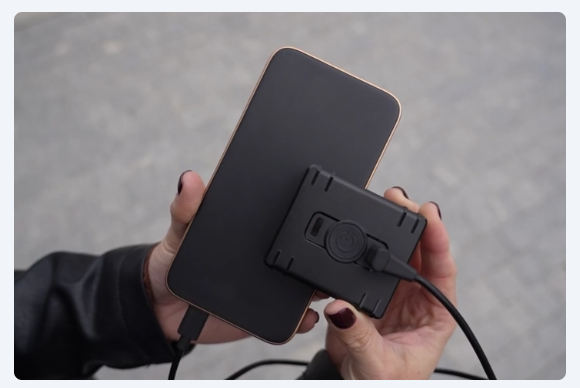

Back‑Up Power Support

Power bank compatibility for prolonged activities and remote operations

Easy, Robust Use

Weather‑resistant IP65 design* and fast, cable‑free installation

Asset Tracking

Workforce Monitoring

Livestock & Pets Monitoring

Teltonika ATM700 is a mini asset tracker designed for people, livestock and valuable goods. It combines LTE Cat M1/NB‑IoT and GSM connectivity with GNSS positioning and a 1,000 mAh rechargeable battery to deliver reliable tracking in a compact form factor.

The device supports flexible movement‑based and periodic tracking, a configurable multi‑action button (including panic functionality), and power bank support for longer journeys. Its IP65* housing enables operation in harsh outdoor environments while allowing quick and cable‑free deployment on a wide range of assets.

*IP65 ingress protection is internally tested and not certified; IP68 version is in development.

Technical Specifications

Product

Model name	ATM700‑Q3AE0
Module name	ATM700‑Q3AE0: BG95‑M3
Technology	LTE Cat M1 / GSM / NB‑IoT / GPRS / GNSS

GNSS

GNSS	GPS, GLONASS, GALILEO, BEIDOU
Receiver	135 tracking/acquisition channels
Tracking sensitivity	‑165 dBM
Position accuracy	< 1.8 m CEP
Hot start	< 1 s
Warm start	< 25 s

Cellular

Technology	LTE Cat M1 / NB‑IoT / GSM
2G bands	ATM700‑Q3AE0: GSM: B2 / B3 / B5 / B8
4G LTE bands	ATM700‑Q3AE0: Cat M1 LTE‑FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 Cat NB2 LTE‑FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Data transfer	LTE Cat M1: Max. 588 kbps (DL) / Max. 1119 kbps (UL) LTE Cat NB2: Max. 127 kbps (DL) / Max. 158.5 kbps (UL) GPRS: Max. 107 kbps (DL) / Max. 85.6 kbps (UL)
Data support	SMS (TEXT, PDU), Network protocols (TCP)
Transmit power	Class 4 for GSM850/900: 33 ± 2 dBM Class 1 for GSM1800/1900: 30 ± 2 dBM Class 5 for LTE‑FDD: 21 +1.7/‑3 dBM
Data codec	Codec 8 Extended

Power

Internal battery	1,000 mAh Li‑Po battery, 3.7 V (3.7 Wh)

Physical Specification

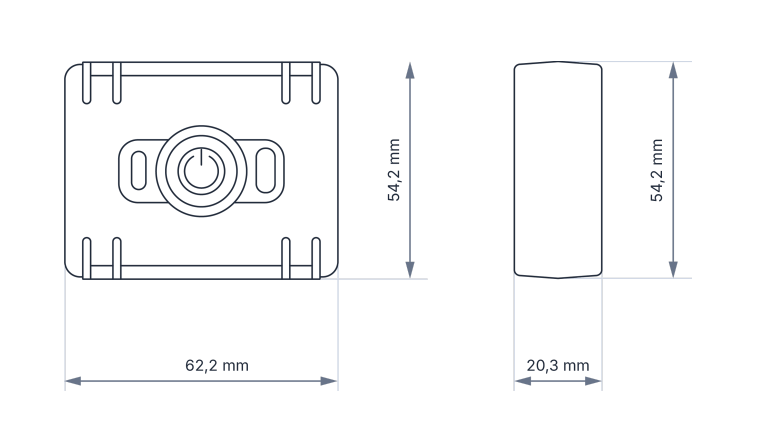

Dimensions	62.2 × 54.2 × 20.33 mm (L × W × H)
Weight	71 g

Operating Environment

Operating temperature	‑20 °C to +60 °C
Storage temperature	‑10 °C to +25 °C for 1 month 0 °C to +25 °C for longer than 3 months
Operating humidity	5% to 95% non‑condensing
Ingress Protection Rating	IP65* (internally tested, not certified). IP68 – in development.
Battery charge temperature	0 °C to +45 °C
Battery discharge temperature	‑20 °C to +60 °C
Battery storage conditions	‑10 °C to +50 °C for 1 month ‑10 °C to +35 °C for 3 months 0 °C to +30 °C for 1 year

Interface

GNSS antenna	Internal High Gain
Cellular antenna	Internal High Gain
USB	USB 2.0 Type‑C
LED indication	1 status RGB LED light
SIM	Nano‑SIM
Memory	128 MB internal flash memory

Features

Sensors	Accelerometer
Scenarios	Movement‑based tracking, Periodic tracking, Scheduler, Alarm button, Power bank support, Configurable LED indication
Sleep modes	Online sleep, Power off sleep
SMS	Configuration, Debug
GPRS commands	Configuration, Debug
Time Synchronization	GNSS, NITZ, NTP

Certification & Approvals

Regulatory	CE RED, UKCA, E‑Mark, RCM
