FTM305
e-Mobility Tracker

Compact 4G LTE Cat M1 e-mobility tracker with CAN data reading and robust IP67-rated casing

download spec sheet

CAN data for e-mobility efficiency

Get crucial CAN parameters and create a custom parameter database to enhance the operational efficiency of your e-mobility fleet

Perfect for high-voltage transport and machinery

Solid 10-97 V power supply allows device integration in e-bikes, forklifts, shuttle cars, utility machinery, and other electric equipment

Protection against dust and water

Robust yet small IP67-rated casing provides trusted protection against dust and resistance to water

Higher GNSS accuracy

More precise GNSS with up to 41 visible satellites, enabling considerably higher tracking quality for location-based services

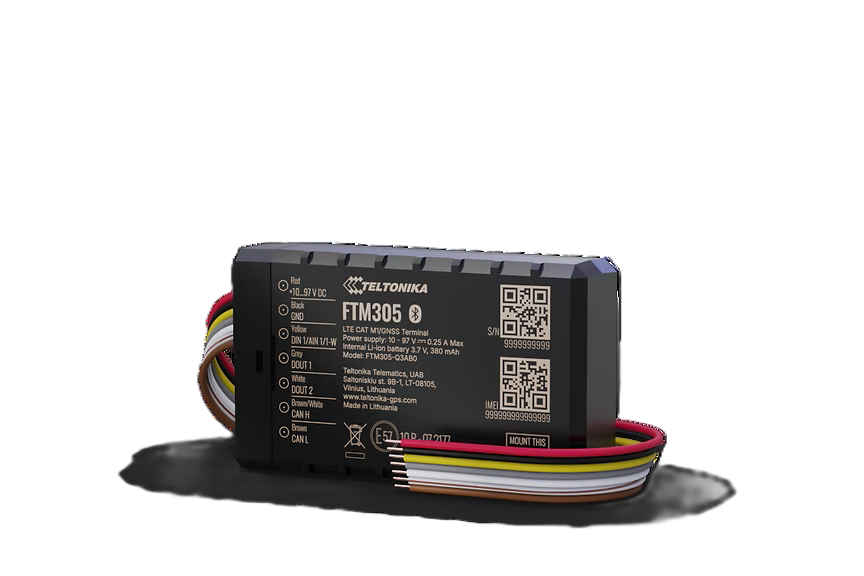

FTM305

Compact 4G LTE Cat M1 E‑Mobility Tracker with CAN Data and IP67 Casing

Teltonika | Telematics • FTM305 Datasheet v1.3 • 2026‑02‑25

CAN DATA

Reads crucial CAN parameters for e‑mobility systems and custom databases

IP67 RATED

Rugged housing with full dust protection and water resistance

10‑97 V SUPPLY

Wide voltage range for e‑bikes, forklifts, utility machinery, and more

HIGH GNSS ACCURACY

Up to 41 visible satellites for precise tracking and LBS

2‑ & 3‑WHEELER MONITORING

INDUSTRIAL MACHINERY

CITY UTILITY SERVICES

RECREATIONAL VEHICLES

HIGH‑VOLTAGE EQUIPMENT

Teltonika FTM305 is a compact LTE Cat M1/NB‑IoT and GSM tracker designed for e‑mobility and industrial applications. It combines GNSS, CAN data reading, Bluetooth® LE, and a wide 10‑97 V power supply in a rugged IP67‑rated housing suitable for harsh environments.

The device is ideal for monitoring 2‑ and 3‑wheelers, forklifts, shuttle cars, city utility machinery, and recreational vehicles, providing precise positioning with support for up to 41 visible satellites, flexible CAN data access, and advanced scenarios such as Green Driving, crash detection, and jamming detection.

Technical Specifications

Product

Model name	FTM305‑Q2AB0, FTM305‑Q3AB0, FTM305‑Q5AB0
Module	FTM305‑Q2AB0: Quectel BG95‑M1, internal antennas, casing version FTM305‑Q3AB0: Quectel BG95‑M3, internal antennas, casing version FTM305‑Q5AB0: Quectel BG95‑M6, internal antennas, casing version
Technology	LTE Cat M1 / NB‑IoT / GSM / GPRS / GNSS / Bluetooth® LE

GNSS

GNSS	GPS, GLONASS, GALILEO, BEIDOU
Receiver	L1: 75 channels
Tracking sensitivity	‑165 dBM
Position accuracy	< 1.8 m CEP
Velocity accuracy	< 0.1 m/s (within ±15% error)
Hot start	< 1 s
Warm start	< 25 s

Cellular

Technology	LTE Cat M1 / NB‑IoT / GSM
2G bands	GSM: B2 / B3 / B5 / B8
4G LTE Cat M1 bands	FTM305‑Q2AB0 (BG95‑M1), LTE FDD (Cat M1 only): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 FTM305‑Q3AB0 (BG95‑M3), LTE FDD (Cat M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 FTM305‑Q5AB0 (BG95‑M6), LTE FDD (Cat M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B2/B25/B26/B27/B28/B66/B85
4G LTE Cat NB2 bands	FTM305‑Q3AB0 (BG95‑M3), LTE FDD (Cat NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 FTM305‑Q5AB0 (BG95‑M6), LTE FDD (Cat NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Data transfer	FTM305‑Q2AB0 (BG95‑M1): LTE Cat M1: Max. 588 kbps (DL) / Max. 1119 kbps (UL) FTM305‑Q3AB0 (BG95‑M3): LTE Cat M1: Max. 588 kbps (DL) / Max. 1119 kbps (UL); LTE Cat NB2: Max. 127 kbps (DL) / Max. 158.5 kbps (UL); GPRS: Max. 107 kbps (DL) / Max. 85.6 kbps (UL) FTM305‑Q5AB0 (BG95‑M6): LTE Cat M1: Max. 588 kbps (DL) / Max. 1119 kbps (UL); LTE Cat NB2: Max. 127 kbps (DL) / Max. 158.5 kbps (UL)
Transmit power	Class 4 for GSM850/900: 23 ± 2 dBm Class 1 for GSM1800/1900: 20 ± 2 dBm Class 3 for LTE‑TDD: 23 ± 2.7 dBm Class 3 for LTE‑FDD: 23 ± 2.7 dBm
Data support	SMS (TEXT, PDU), Network protocols (TCP)

Power

Input voltage range	10 ‑ 97 V DC
Internal back‑up battery	380 mAh Li‑ion battery 3.7 V (1.41 Wh)
Internal fuse	3 A
Power consumption	At 12 V < 45 mA (nominal, no load) At 12 V < 0.25 A (with full load / peak)

Bluetooth® Technology

Specification	5.3 + LE, supports Teltonika EYE sensors and EYE beacons

Physical Specification

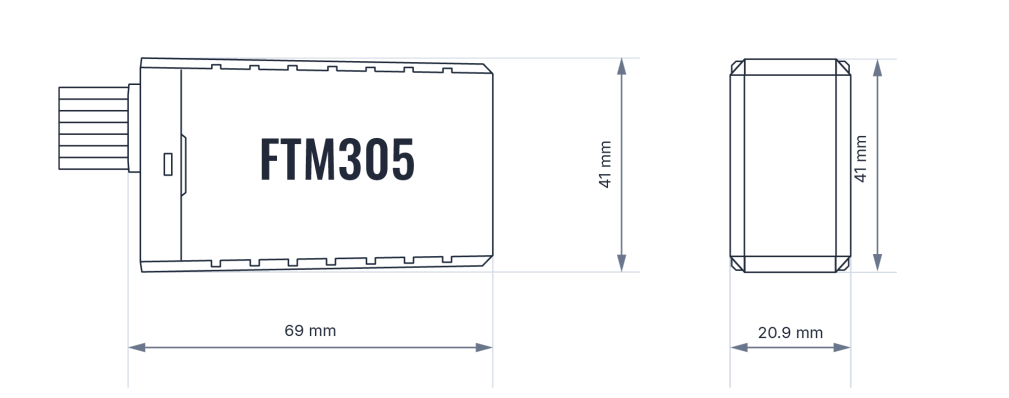

Dimensions	69 × 41 × 20.9 mm (L × W × H)
Weight	76.8 g

Operating Environment

Operating temperature	‑30 °C to +85 °C
Storage temperature	‑30 °C to +85 °C
Operating humidity	65 ± 20% non‑condensing
Ingress Protection Rating	IP67
Battery charge temperature	0 °C to +45 °C
Battery discharge temperature	‑20 °C to +60 °C
Battery storage conditions	‑10 °C to +25 °C for 3 or more months

Interface

Digital Inputs	1
Digital Outputs	2
Analog Inputs	1
1‑Wire	1
CAN	1
GNSS antenna	Internal High Gain
Cellular antenna	Internal High Gain
USB	2.0 USB Type‑C
LED indication	2 status LED lights
SIM	Nano‑SIM
Memory	128 MB internal flash memory
Data codec	Codec 8 Extended

Features

Sensors	Accelerometer
Scenarios	Green Driving, Over Speeding detection, Jamming detection, Unplug detection, Crash detection, Manual CAN data reading, Manual CAN commands
Sleep modes	Online sleep, Deep sleep, Power off sleep
Configuration and firmware update	FOTA Web, Telematics Configurator (TCT)
Time Synchronization	GNSS, NITZ, NTP
Ignition detection	Digital Input 1, Accelerometer, External Power Voltage, Manual CAN
